MS Type Buried Scraper Conveyor

MS Type Buried Scraper Conveyor

MS Type Buried Scraper Conveyor is a continuous conveying device for transporting powder, small particles, small blocks and other bulk materials in a closed rectangular cross-section housing by means

Introduction of

MS Type Buried Scraper Conveyor

MS Type Buried Scraper Conveyor is a continuous conveying device for transporting powder, small particles, small blocks and other bulk materials in a closed rectangular cross-section housing by means of a moving scraper chain. Because the scraper chain is completely buried in the material when conveying the material, it is called "Buried Scraper Conveyor".

Working Principle Of MS Type Buried Scraper Conveyor

When Buried Scraper Conveyor is transported horizontally, the material is subjected to the pressure of the scraper chain in the direction of movement and the weight of the material itself, creating internal friction between the materials. This frictional force ensures a stable state between the layers and is sufficient to overcome the external friction generated by the movement of the material in the machine slot, allowing the material to form a continuous overall stream to be transported. When the Buried Scraper Conveyor is vertically lifted, the material is subjected to the pressure of the scraper chain in the moving direction, and lateral pressure is generated in the material to form the internal friction of the material. At the same time, due to the continuous feeding of the lower horizontal section, the lower material successively exerts a pushing force on the upper material. This frictional force and pushing force are sufficient to overcome the external frictional resistance generated by the movement of the material in the machine slot and the weight of the material itself, so that the material forms a continuous overall flow and is lifted.


Application Of MS Type Buried Scraper Conveyor

Examples of materials that MS Type Buried Scraper Conveyor can transport: coal powder, crushed coal, soot, carbon black, ammonium bicarbonate, pyrite powder, ammonium chloride, copper concentrate powder, alumina powder, gypsum powder, limestone Powder, baking soda, urea, activated carbon, sodium chloride, calcium silicate, asbestos powder, synthetic resin, rubber powder, calcium carbide, clay, synthetic fertilizer, granular pesticide, barium sulfate, ammonium sulfate, soda ash, powdered medicine, Wheat, soybean, rice, sugar, starch, crushed wood carbon, wood chips, sawdust, polyvinyl alcohol synthetic detergent, fly ash phosphate fertilizer, and the like. The universal Buried Scraper Conveyor is not suitable for conveying high temperature, toxic, explosive and flammable, highly abrasive, highly corrosive, highly adherent, highly levulable, fluidity Good, hard and brittle materials that do not want to be broken.

Main Parameter of

MS Type Buried Scraper Conveyor

The model produced by our company is the universal Buried Scraper Conveyor, which has the advantages of simple structure, light weight, small volume, good sealing performance and convenient installation and maintenance. It can not only transport horizontally but also tilt and vertical conveyance; not only can it be transported by single machine, but also can be combined and arranged in series, can be fed in multiple places, can also be discharged at multiple points, and the process layout is more flexible. Due to the closed casing, the working conditions can be significantly improved when conveying materials to prevent environmental pollution.

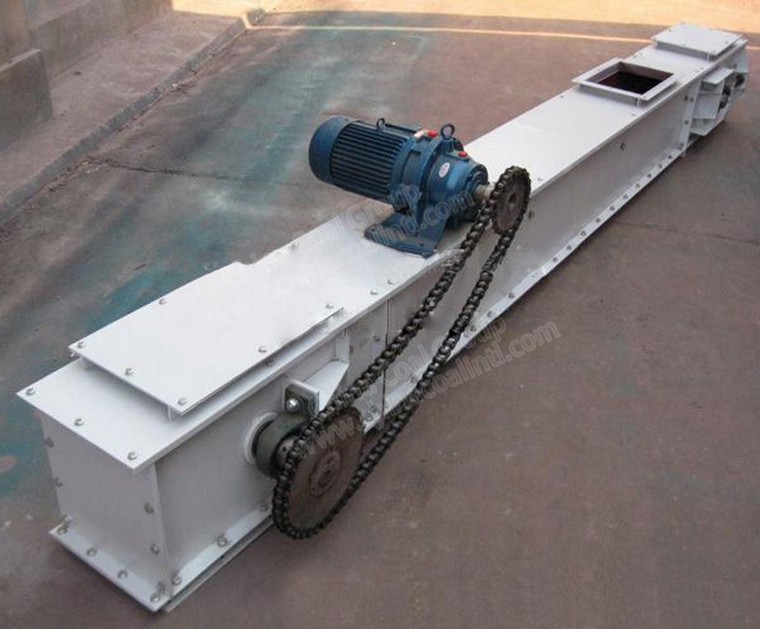

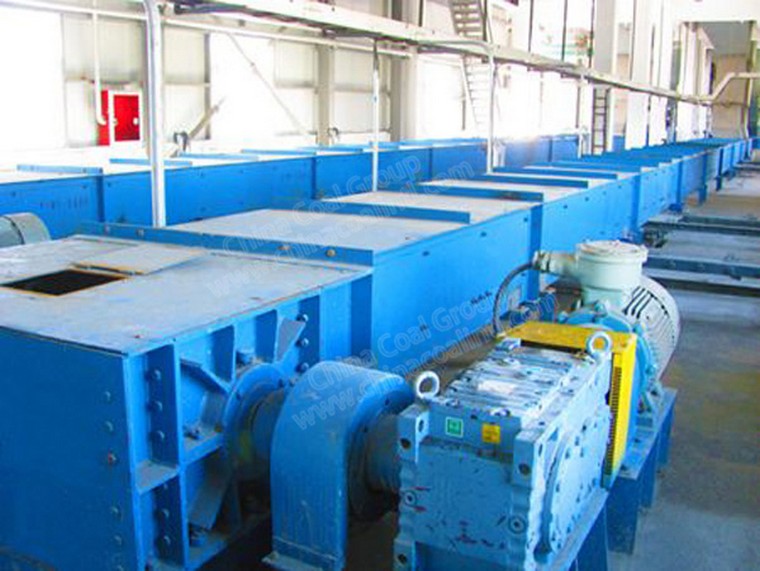

Photos Of

MS Type Buried Scraper Conveyor

  • MS Type Buried Scraper Conveyor
  • MS Type Buried Scraper Conveyor
