Introduction ofMS25 Buried Chain Scraper Conveyor
The buried scraper conveyor is mainly composed of a closed section housing (machine slot), a scraper chain, a driving device. The utility model has the advantages of simple structure, small volume, good sealing performance, convenient installation and maintenance, multi-point feeding, multi-point discharging, flexible process selection and arrangement; when conveying flying, toxic, high temperature, flammable and explosive materials Can improve working conditions and reduce environmental pollution. Models are: general-purpose, hot-type, soda-only (common, high-efficiency), grain-specific, cement-specific, power plant-specific, etc., with a groove width of 120-1000mm.
MAIN PARAMETER OFMS25 Buried Chain Scraper Conveyor
|
Delivery volume
|
60m3/h
|
|
Material bulk density:
|
0.4-0.8
|
|
Delivery length:
|
40m
|
|
Safety angle:
|
0-15°
|
|
Chain spacing:
|
200
|
|
Chain pitch:
|
100
|
|
Roller diameter:
|
28mm
|
|
Chain type:
|
TG100
|

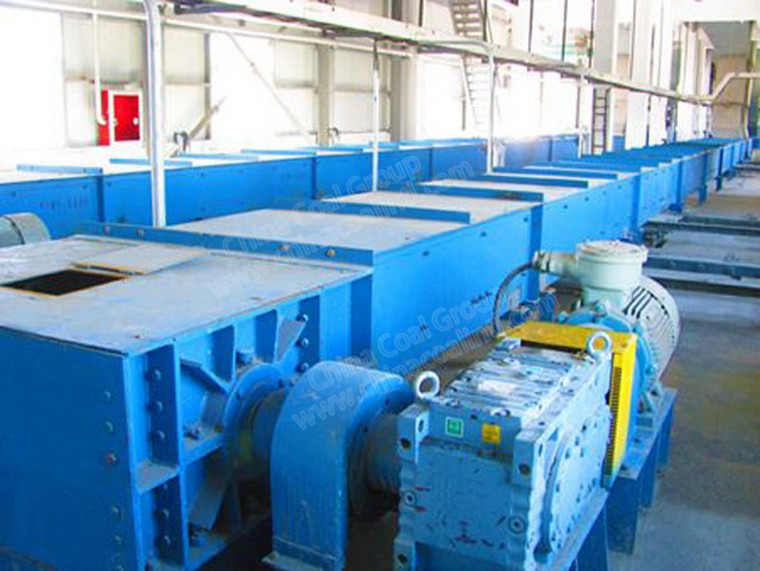

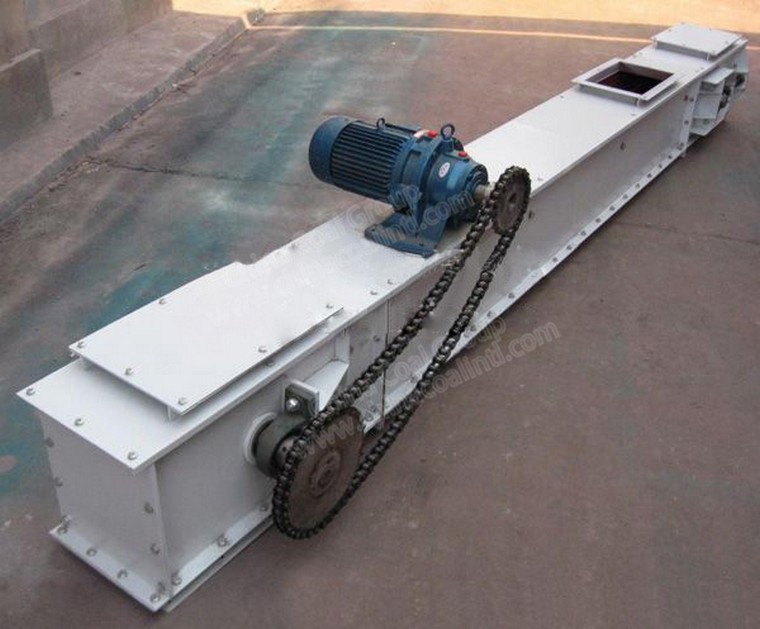

PHOTOS OFMS25 Buried Chain Scraper Conveyor
PHOTOS OF MS25 Buried Chain Scraper Conveyor
