MX Series Horizontal Coal Mining Scraper Conveyor

MX Series Horizontal Coal Mining Scraper Conveyor

MX type buried scraper conveyor engineering is also called high-efficiency buried scraper conveyor can be used for horizontal inclined conveying powder and small particle materials in chemical, cement

Introduction of

MX Series Horizontal Coal Mining Scraper Conveyor

MX type buried scraper conveyor engineering is also called high-efficiency buried scraper conveyor can be used for horizontal inclined conveying powder and small particle materials in chemical, cement, light industry, grain, food and other departments. The MX series large-capacity buried scraper conveyor is designed for different transportation conditions. It has high efficiency, low power consumption and low noise. The maximum inclination can be up to 30 degrees when tilting. This series of scraper conveyors has 4 The model has a maximum conveying capacity of 240m3/h and a maximum conveying distance of up to 80m.


Application Range Of MX Series Horizontal Coal Mine Scraper Conveyor

Material bulk density:  ρ = 0.2 ~ 0.8 hours / cubic meter

Material temperature:  t250°C

Material moisture content: Generally, the density can be loosened after being squeezed into a mass by hand.

Material particle size: no more than 1/18 of the effective density of the machine tank, and this part of the material does not exceed 10% of the total amount of the material.

Installation angle: 0°<α≤30°

Examples of transportable materials: high-temperature soda ash, cement, alumina powder, activated carbon, urea phosphate rock powder, coal powder, wheat, grain flour, etc.


Main Parameter of

MX Series Horizontal Coal Mining Scraper Conveyor

Model

MX32

MX42

MX52

MX60

Machine Slot Width(mm)

530

630

750

840

Load Depth(mm)

180

250

300

330

Chain

Width(mm)

300

400

500

580

High(mm)

150

222

270

300

Weight(kg/m)

42

50

72

74

Speed(m/s)

0.16-0.46

0.16-0.46

0.16-0.46

0.16-0.46

Delivery Volume(m3/h)

20-60

40-120

60-180

80-240

Max Conveying Distance(m)

90

60

45

40

Electric Power(kw)


≤37

≤45

≤45

≤55

Photos Of

MX Series Horizontal Coal Mining Scraper Conveyor

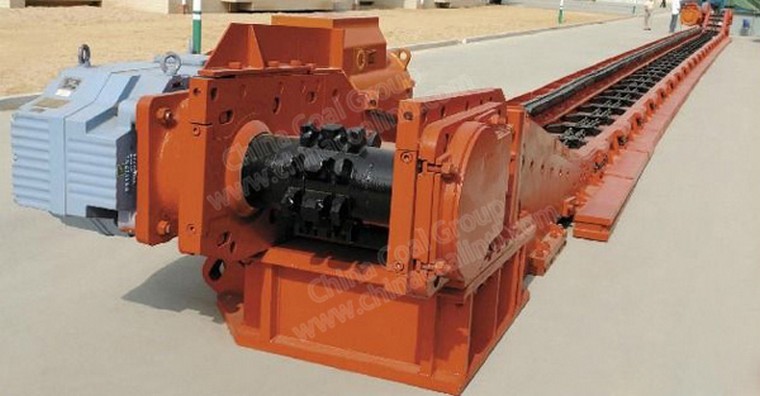

  • MX Series Horizontal Coal Mining Scraper Conveyor

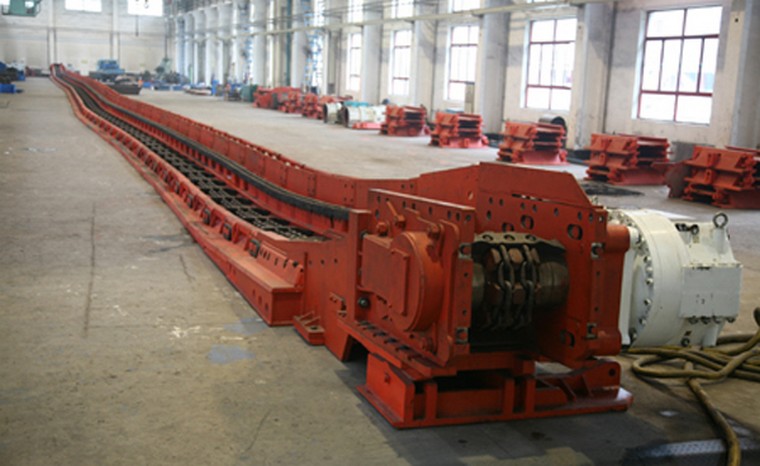

  • MX Series Horizontal Coal Mining Scraper Conveyor
