SGB Scraper Chain Conveyor

Date:2018-11-22     Label:

Scraper Conveyor

Coal Mining Scraper Conveyor

Coal Conveyor

XGZ type cast stone scraper conveyor is suitable for the closed conveying of powder, granular, small block and mixed materials with temperature below 250°, mainly for horizontal transportation. It can

Contact Us Product Center
Introduction of

SGB Scraper Chain Conveyor

XGZ type cast stone scraper conveyor is suitable for the closed conveying of powder, granular, small block and mixed materials with temperature below 250°, mainly for horizontal transportation. It can also be inclined and conveyed. Its conveying inclination angle is 20°. It is mainly suitable for the transportation of various materials and ideal equipment in dusty and humid working environment. XGZ type cast stone scraper conveyor can be applied to mine, metallurgy, coal mine, The chemical transports materials with no excessive moisture content, and the particle size in the system is below 300mm.


Main Characteristics of SGB Scraper Chain Conveyor

1. Solid structure: SGB Scraper Chain Conveyor Machine can withstand coal and waste rock or other materials of blunt, hit, and other external force.

2. It can adapt to the coalface floor rugged, bending goes needs, can withstand the vertical or horizontal bending.

3. Body short, easy to install.

4. It can double as the shearer running the orbit .

5. SGB Scraper Chain Conveyor Machine can reverse operation, easy to deal with bottom chain accident.



MAIN PARAMETER OF

SGB Scraper Chain Conveyor

Model

SGB420/22

SGB420/30

SGB420/40X

SGB620/40

SGB620/55)

SGB620/80

Delivery Capacity  (t/h)

60

80

100

150

150

150

Standard length(m)

80

100

100

100

100

160

Chain speed(m/s)

0.88

0.88

0.86

0.86

0.86

0.86

Electric motors

Model number

JDSB-22

JDSB30

JDSB40

DSB40

DSB55

DSB40



Power(kW)

22

30

40

40

55

2*40



Voltage(V)

220/380

380/660

380/660

380/660

380/660

380/660

Scraper chain

Form

Side double-stranded

Side double-stranded

Side double-stranded

Side double-stranded

Side double-stranded

Side double-stranded



Chain size(mm)

14*50

14×50

18×64

18×64

18×64

18×64



Breaking load(KN)

≥250

≥250

320

≥320

≥320

≥320

Middle Flute size          (L x W x H)

1200×420×150

1200×420×150

1200×420×180

1500×620×180

1500×620×180

1500×620×180

Total weight(t)

8.5

10.6

16

17.8

17.9

28.6

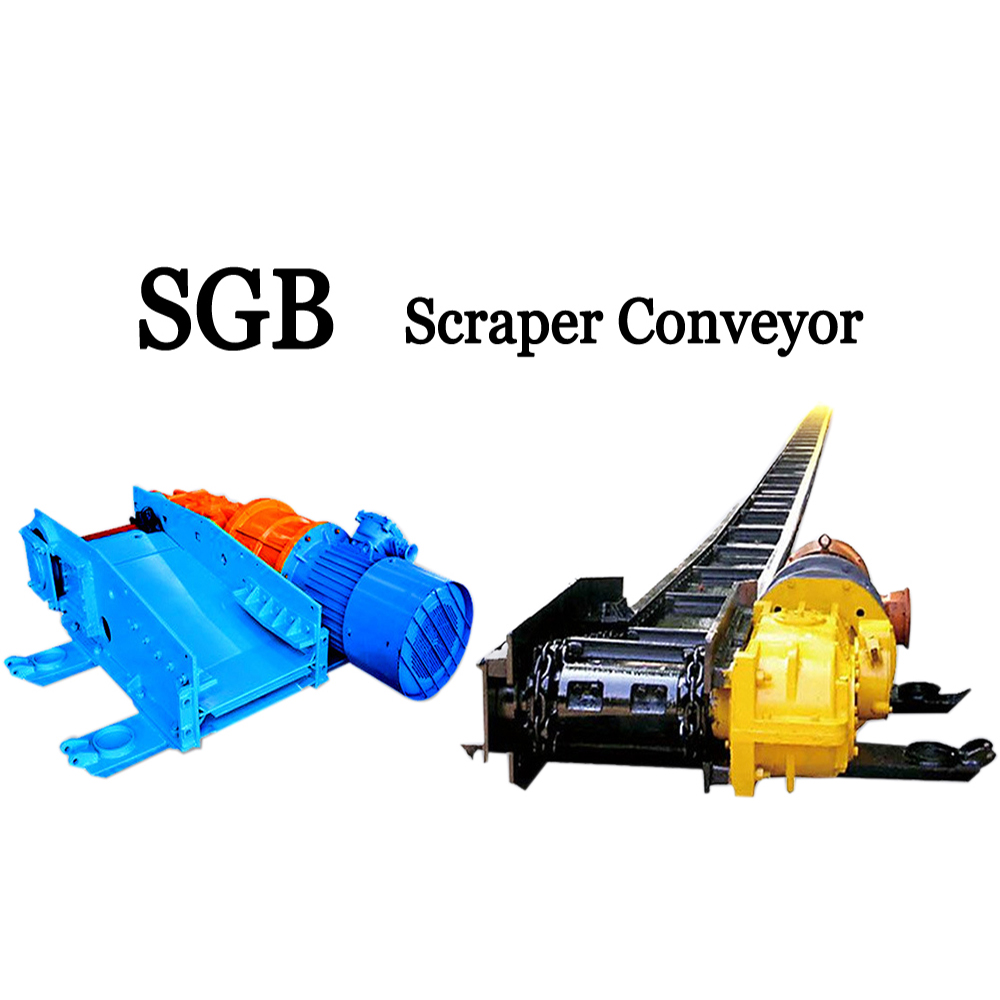

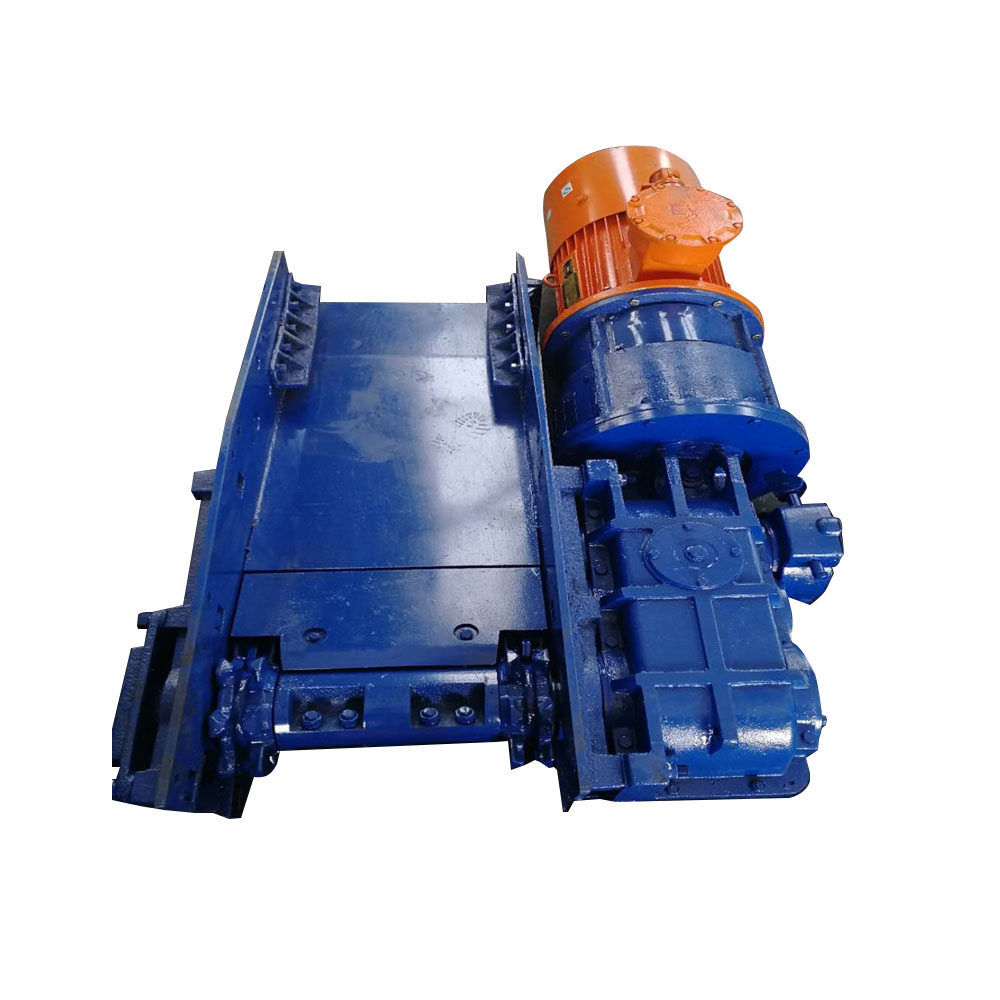

PHOTOS OF

SGB Scraper Chain Conveyor

SGB Scraper Chain Conveyor
SGB Scraper Chain Conveyor
PHOTOS OF

SGB Scraper Chain Conveyor
