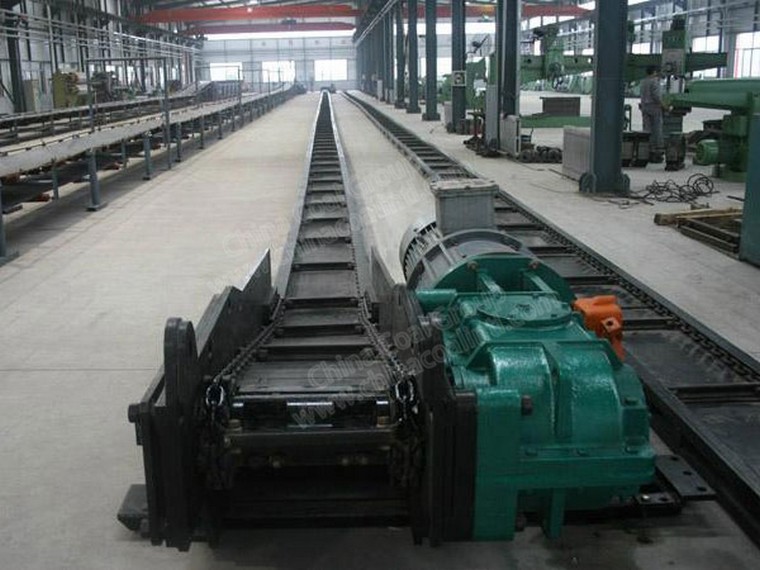

SGD-320/17B scraper conveyor is mainly used for conveying coal in the guns taken working face of underground small coal seams in small and medium-sized coal mines. The scraper chain is a single circular chain, and the central trough is an integral chute, which can be bent horizontally and vertically. Therefore, the machine can be moved in use.
SGD-320/17B scraper conveyor is mainly used for gently tilting or ultra-thin, medium-thick coal seam mining face, roadway and chute to transport coal in small and medium-sized coal mines. It can also be matched with coal mining machine to realize mechanized production. The structure is simple and light, the main parts are made of high-strength steel, the design is reasonable, the whole machine is safe and reliable, and the use and maintenance are convenient.

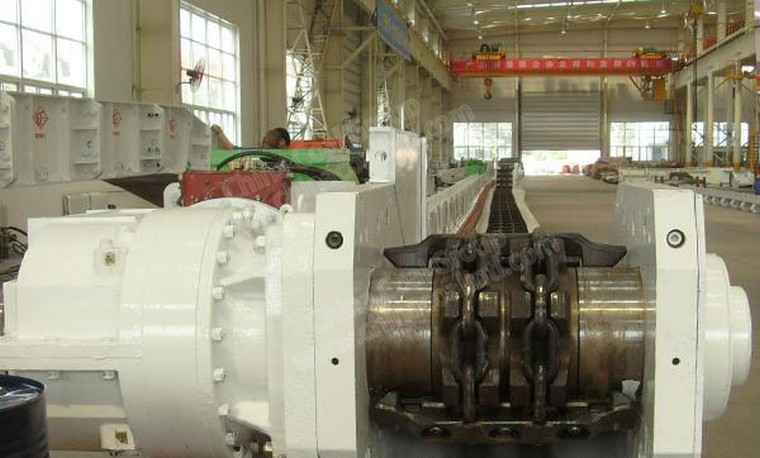

The working principle of the SGD320/17B scraper conveyor is to use the open chute as a bearing for coal, vermiculite or material, and fix the scraper on the chain (constituting the scraper chain) as the traction member. When the head drive is activated, the sprocket on the driven head shaft rotates, causing the scraper chain to circulate and move the animal material along the chute until the head is unloaded. The scraper chain bypasses the sprocket for a stepless closed cycle operation to complete the material transport.
1. The structure is solid. It can withstand the external forces such as punching, smashing, smashing and pressing of coal, vermiculite or other materials.
2. It can adapt to the need of unevenness and bending of the bottom surface of coal mining face, and can withstand bending in vertical or horizontal direction.
3. the body is short, easy to install.
4. can double as the track of the shearer operation.
5. can be reversed to facilitate the handling of the bottom chain accident.
6.can be used as the fulcrum of the front section of the liquid night stent.
Main Parameter of|
Parameter Name |
Unit |
Parameter Value |
Parameter Name |
Unit |
Parameter Value |
||
|
Conveyor Model |
SGD320/17B |
Electric Motor |
Model |
YBS-17-4 |
|||
|
Delivery Volume |
T/h |
40 |
|
Power |
kw |
17 |
|
|
Design Length |
m |
80 |
|
Rotating Speed |
r/min |
1470 |
|
|
Head Height |
mm |
480 |
|
Voltage |
V |
380/660 |
|
|
Scraper Chain Speed |
m/s |
0.59 |
Scraper Chain
|
Ring Chain Specification |
mm |
Φ14×50 |
|
|
Middle Slot |
Length × Width × Height |
mm |
1200×320×156 |
|
Breaking Force Of Each Ring Chain |
kN |
≥250 |
|
|
Quality Per Section |
kg |
55 |
|
|
|
|
|
Machine Quality |
kg |
6225 |
|
Reducer Gear Ratio |
|
24.95 |
|
