SGB320/17B Scraper Conveyor

SGB320/17B Scraper Conveyor

SGB320/17B scraper conveyor is mainly used for conveying coal in the low-slurry and thin coal seam blasting working face of small and medium-sized coal mines. The scraper chain is a single circular ch

Introduction of

SGB320/17B Scraper Conveyor

SGB320/17B scraper conveyor is mainly used for conveying coal in the low-slurry and thin coal seam blasting working face of small and medium-sized coal mines. The scraper chain is a single circular chain, the middle slot is an integral chute, and the middle connection is a bolt, which can be bent in the horizontal and vertical directions, and adopts a manual overall transfer machine. The conveyor adds a baffle to the central trough to increase its conveying section and can also be used in the middle lane. In the case of coal mines that are not suitable for general large and medium-sized scrapers due to geological conditions, this conveyor can also be used as an auxiliary.

Main Parameter of

SGB320/17B Scraper Conveyor

Product Model:

SGB320/17B

Delivery Volume (T/H):

40

Design Length (M):

80

Motor Power (KW):

17

Chain Speed (M/S):

0.63

Middle Groove Specification (Length * Width * Height):

1200 * 320 * 150

Photos Of

SGB320/17B Scraper Conveyor

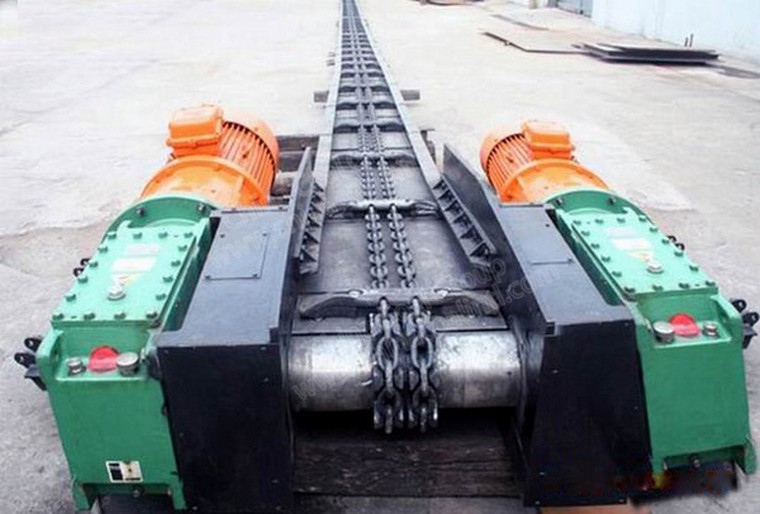

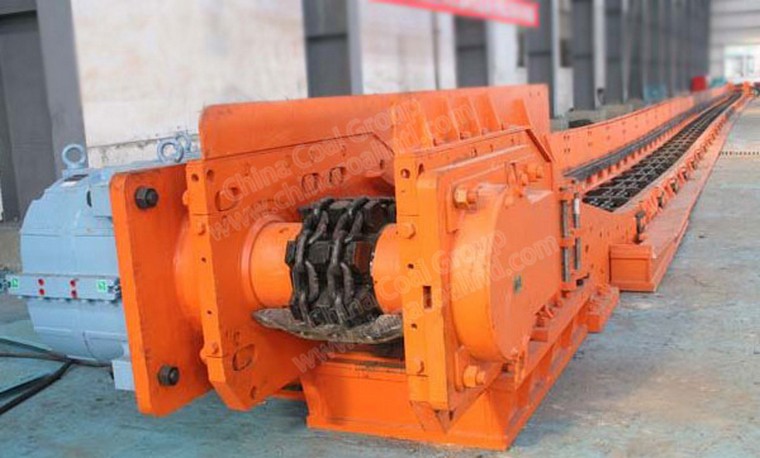

  • SGB320/17B Scraper Conveyor
  • SGB320/17B Scraper Conveyor
