SGB-420/30 Chain Scraper Conveyor

SGB-420/30 Chain Scraper Conveyor

SGB-420/30 scraper conveyor has the characteristics of strong transportation, stable transmission, simple structure, convenient assembly and disassembly, easy maintenance, safety and reliability. It i

Introduction of

SGB-420/30 Chain Scraper Conveyor

SGB-420/30 chain scraper conveyor has the characteristics of strong transportation, stable transmission, simple structure, convenient assembly and disassembly, easy maintenance, safety and reliability. It is mainly suitable for conveying coal in the gently inclined thin coal seam and medium thick coal seam working face of coal mine, and the installation of the coal retaining plate can be used as the chute transportation.

Model Meaning Of SGB-420/30 Chain Scraper Conveyor

Model: SGB-420/30 scraper conveyor;

S——conveyor;

G——scraper;

B——double-chain type;

420——the width of the central groove is 420 (mm);

30——Motor power 30 (kw).

Characteristics Of SGB-420/30 Chain Scraper Conveyor

1. The structure is solid. It can withstand the external forces such as punching, smashing, smashing and pressing of coal, vermiculite or other materials.

2. It can adapt to the need of unevenness and bending of the bottom surface of coal mining face, and can withstand bending in vertical or horizontal direction.

3.the body is short, easy to install.

4. can double as the track of the shearer operation.

5.can be reversed to facilitate the handling of the bottom chain accident.

6.can be used as the fulcrum of the front section of the liquid night stent.

Main Parameter of

SGB-420/30 Chain Scraper Conveyor

Delivery volume (t/h)

80

Design length (m)

100

Chain speed (m/s)

0.88

Motor

Motor type

JDSB-30

Rated power (Kw)

30

Rated voltage (V)

380/660

Speed (r/min)

1470

Middle slot

Dimensions (length×width×height) mm

1200×420×150

Horizontal bending (°)

3 Vertical bending (°) 3

Quality per section (Kg)

75.65

Scraper chain

Ring chain specification mm

φ14×50B

Number of circular chains

2

Scraper chain center distance mm

315

Scraper spacing mm

800

Ring chain breaking load KN

190

Connecting ring breaking load KN

170

Scraper chain unit mass Kg/m

14.2

Type

side double chain

Reducer speed ratio

22.245

Tight

chain type

Unloading

method

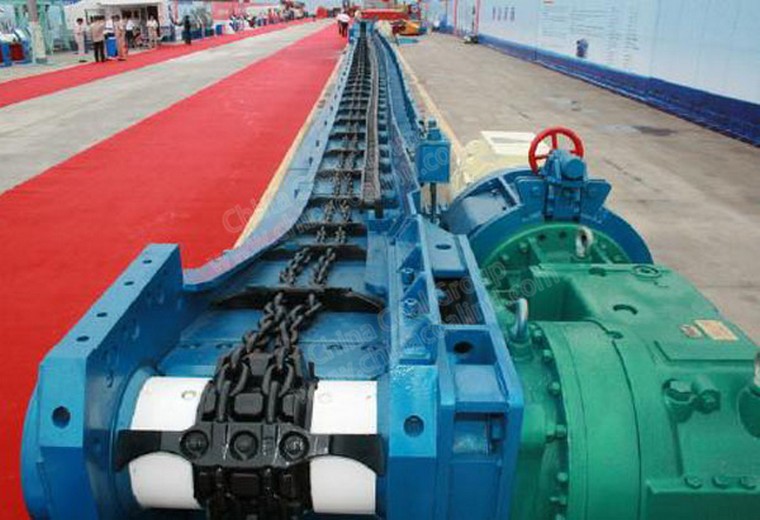

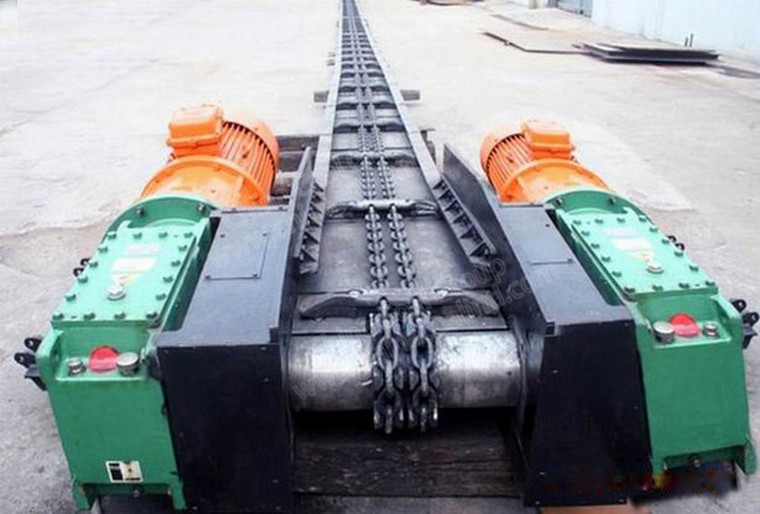

Photos Of

SGB-420/30 Chain Scraper Conveyor

  • SGB-420/30 Chain Scraper Conveyor
  • SGB-420/30 Chain Scraper Conveyor
