SGB420/40Z Mining Scraper Conveyor

SGB420/40Z Mining Scraper Conveyor

SGB420/40Z Scraper Conveyor The working surface conveyor with the fuselage at the intersection of the working surface and the transportation lane is 90 degree bend. It is called“corner scraper conveyo

Introduction of

SGB420/40Z Mining Scraper Conveyor

SGB420/40Z Scraper Conveyor The working surface conveyor with the fuselage at the intersection of the working surface and the transportation lane is 90 degree bend. It is called“corner scraper conveyor”.

The main structure and the components of the various types of scraper conveyors are basically the same, and it consists of three parts: the head, the middle part and the tail part.

In addition, there are auxiliary components such as a hydraulic jack device for the pusher conveyor and a chain tensioner for the chain.

The head of the machine consists of a headstock, an electric motor, a fluid coupling, a reducer and a sprocket.

The middle part is composed of a transition groove, a middle groove, a chain and a scraper.

The tail of the machine is the device for returning the scraper chain

SGB420/40Z Mining Scraper Conveyor Safety Operation Procedures

1. Labor protection supplies must be worn before operation.

2. It is strictly forbidden to drill across the guardrail and stand on the scraper rod to pick up coke.

3. It is forbidden to put red coke on the belt.

4. It is forbidden to scrape the material when the belt is not running.

5. It is strictly forbidden to start the equipment during equipment maintenance.

6. It is forbidden to jump the guardrail and stay at the quenching track.

Main Parameter of

SGB420/40Z Mining Scraper Conveyor

Product model:

SGB420/40Z

Delivery volume (t/h):

100

Design length (m):

100

Motor power (kW):

40

Chain speed (m/s):

0.86

Middle groove specification (length * width * height):

1200 * 420 * 180

Photos Of

SGB420/40Z Mining Scraper Conveyor

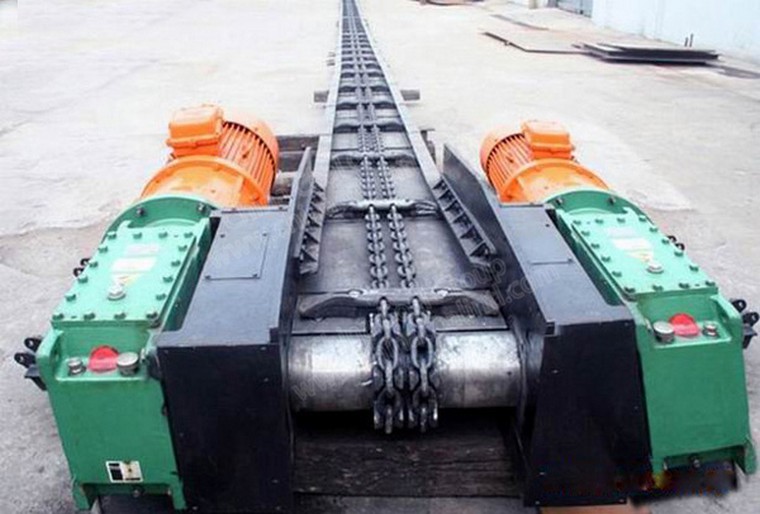

  • SGB420/40Z Mining Scraper Conveyor

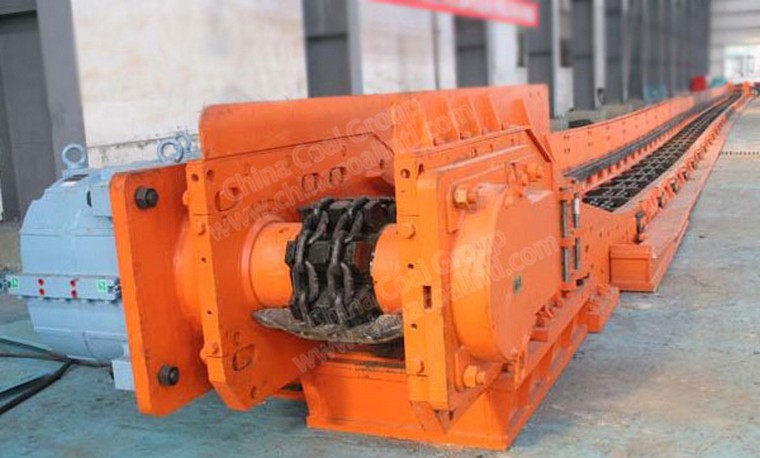

  • SGB420/40Z Mining Scraper Conveyor
