SGB620/40T Coal Mining Chain Scraper Conveyor

Date:2018-11-22     Label:

Scraper Conveyor

Coal Mining Scraper Conveyor

Chain Scraper Conveyor

The open chute is used as a receiving member for coal, vermiculite or material, and the scraper is fixed on the chain (constituting the scraper chain) as a traction member. When the head drive is acti

Contact Us Product Center
Introduction of

SGB620/40T Coal Mining Chain Scraper Conveyor

The open chute is used as a receiving member for coal, vermiculite or material, and the scraper is fixed on the chain (constituting the scraper chain) as a traction member. When the head drive is activated, the sprocket on the driven head shaft rotates, causing the scraper chain to circulate and move the animal material along the chute until the head is unloaded. The scraper chain bypasses the sprocket for a stepless closed cycle operation to complete the material transport.


Advantage Of SGB620/40T Mining Chain Scraper Conveyor

1. The structure is solid. It can withstand the external forces such as punching, smashing, smashing and pressing of coal, vermiculite or other materials.

2. It can adapt to the need of unevenness and bending of the bottom surface of coal mining face, and can withstand bending in vertical or horizontal direction.

3.the body is short, easy to install.

4. can double as the track of the shearer operation.

5. can be reversed to facilitate the handling of the bottom chain accident.

6. can be used as the fulcrum of the front section of the hydraulic support.

7. The structure is simple, and the feeding length can be fed or unloaded at any point.

8. The casing is sealed to prevent dust from flying and polluting the environment when conveying materials.

9. When the tail is not set, and the scraper is inserted into the pile, it can be picked up by itself.


MAIN PARAMETER OF

SGB620/40T Coal Mining Chain Scraper Conveyor

Product model:

SGB620/40T

Delivery volume (t/h):

150

Design length (m):

100

Motor power (kW):

40

Chain speed (m/s):

0.86

Middle groove specification (length * width * height):

1500*620*180

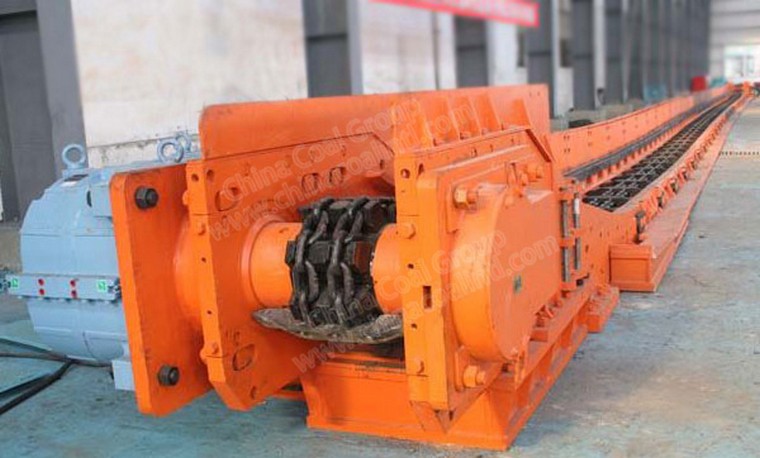

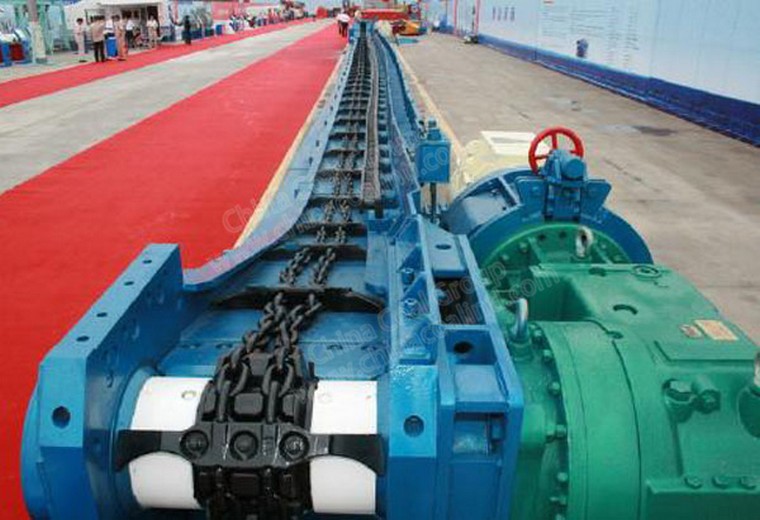

PHOTOS OF

SGB620/40T Coal Mining Chain Scraper Conveyor

SGB620/40T Coal Mining Chain Scraper Conveyor
SGB620/40T Coal Mining Chain Scraper Conveyor
PHOTOS OF

SGB620/40T Coal Mining Chain Scraper Conveyor
