Position:Home  /   Product  /  SGB630/75 Underground Mining Chain Scraper Conveyor

SGB630/75 Underground Mining Chain Scraper Conveyor

Date:2018-11-22     Label:

Scraper Conveyor

Chain Scraper Conveyor

Mining Chain Scraper Conveyor

SGB630/75 scraper conveyor is mainly used for coal mining in coal mines with moderately thick or thick coal seams, thin or very thin coal seams, guns taken, general mining, high-grade conventional min

Contact Us Product Center
Introduction of

SGB630/75 Underground Mining Chain Scraper Conveyor

SGB630/75 scraper conveyor is mainly used for coal mining in coal mines with moderately thick or thick coal seams, thin or very thin coal seams, guns taken, general mining, high-grade conventional mining, fully mechanized coal mining, etc. Roadway transportation and transportation.

The SGB630/75 scraper conveyor is suitable for horizontal conveying and gentle inclined conveying. The inclined angle is inclined within 150°.

Characteristics Of SGB630/75 Underground Mining Chain Scraper Conveyor

SGB630/75 scraper has the characteristics of strong transportation, stable transmission and easy maintenance.


MAIN PARAMETER OF

SGB630/75 Underground Mining Chain Scraper Conveyor

Product model:

SGB630/75

Delivery volume (t/h):

250

Design length (m):

75

Motor power (kW):

75

Chain speed (m/s):

0.868

Middle groove specification (length * width * height):

1500*630*190

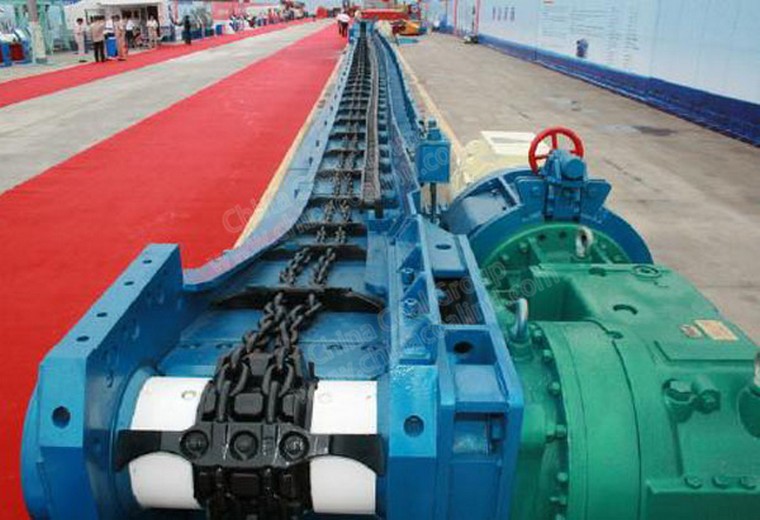

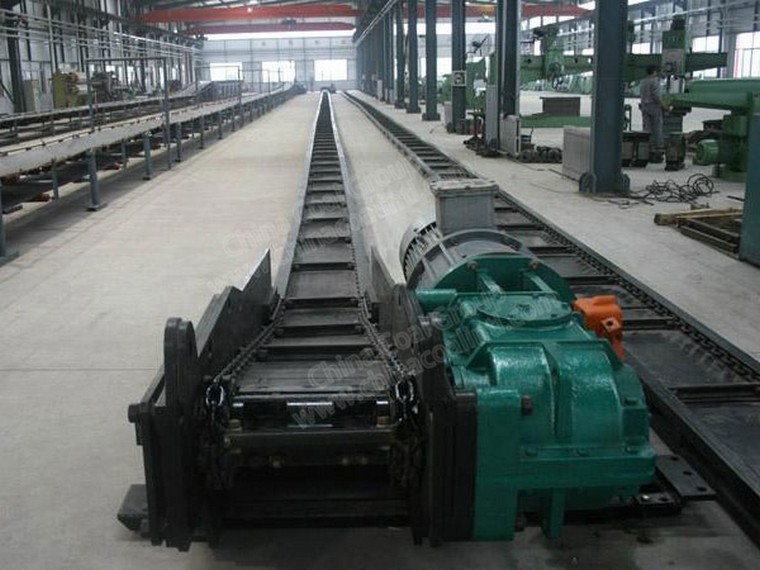

PHOTOS OF

SGB630/75 Underground Mining Chain Scraper Conveyor

SGB630/75 Underground Mining Chain Scraper Conveyor
SGB630/75 Underground Mining Chain Scraper Conveyor
PHOTOS OF

SGB630/75 Underground Mining Chain Scraper Conveyor
