TD75 Coal Mining Conveyor Belt Scraper

Date:2019-12-27     Label:

Conveyor Belt Scraper

Scraper Conveyor

Coal Mining Scraper Conveyor

TD75 conveyor belt scraper is due to large amount transportation, simple structure, easy maintenance, low cost, strong commonality advantages .

Contact Us Product Center
Introduction of

TD75 Coal Mining Conveyor Belt Scraper


Product Introduction TD75 Belt Scraper Conveyor Belt


TD75 common fixed belt conveyor is due to large amount transportation, simple structure, easy maintenance, low cost, strong commonality advantages and widely used in metallurgy, coal, transportation, hydropower and other departments to transport bulk materials or pieces of material. Based on the transmission process requirements, it can single conveying, and also be more sets and with other conveyor formed level or tilted conveying system.

Main Characteristics TD75 Belt Scraper Conveyor Belt


TD75 common fixed belt conveyor, according to support structure, can be divided into two kinds, the fixed and movable. According to the conveyor belt materials, it have rubber belt, plastic belt and steel belt.

Conveyor working environment temperature generally is 10 °C ~ +-40 °C, material temperature should not more than 75 °C. Heat resistant rubber belt can convey high temperature material under 120 °C. When temperature is more higher, it is unfavorable to use belt conveyor.

When convey acid alkali or oil substances and organic solvent etc materials, it need use oil resistance, acid and alkali resistant rubber belt or plastic belt. The bandwidth of the belt conveyor have six kinds: 500, 650, 800, 1000, 1200 and 1400 mm.

Users can, according to the conveyor belt conveyor height, the type of material, capacity, throughput, conveying length and other factors, through calculate to determine the layout of the belt conveyor and selected belt width, canvas layer and rubber belt thickness.



MAIN PARAMETER OF

TD75 Coal Mining Conveyor Belt Scraper


Width

B (mm)

Transmission roller diameter

(mm)

Redirection roller diameter (mm)

≈180°

≈180°redirection


≈90°

≈90°redirection


<45°redirection


500

500

400

320

320

650

500

400

400

320

630

500

800

500

400

400

320

630

500

800

630

1000

630

500

500

400

800

630

1000

800

1200

630

500

500

400

800

630

1000

800

630

1250

1000

1400

800

630

500

400

1000

800

1250

1000

630

1400

1250

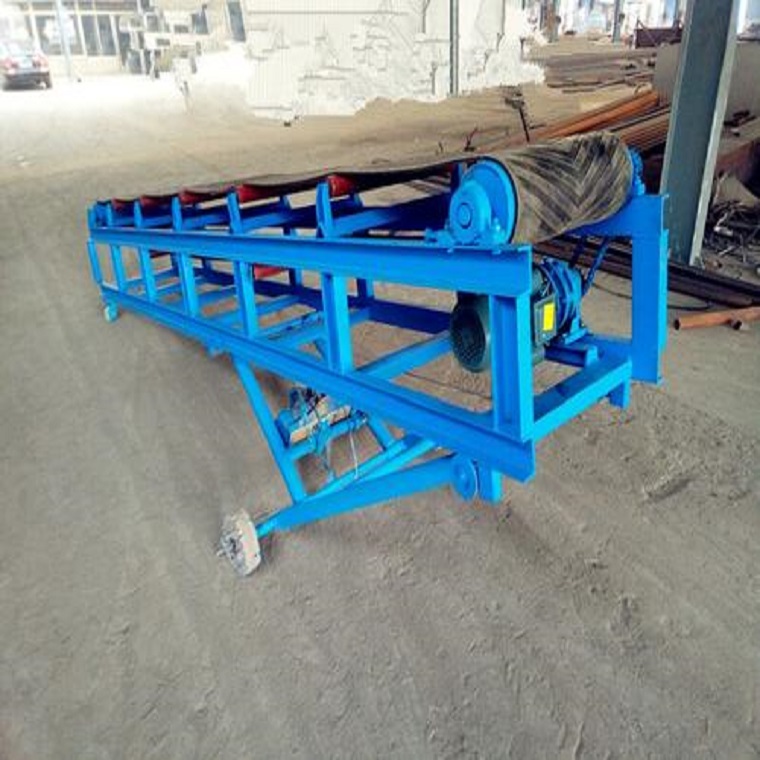

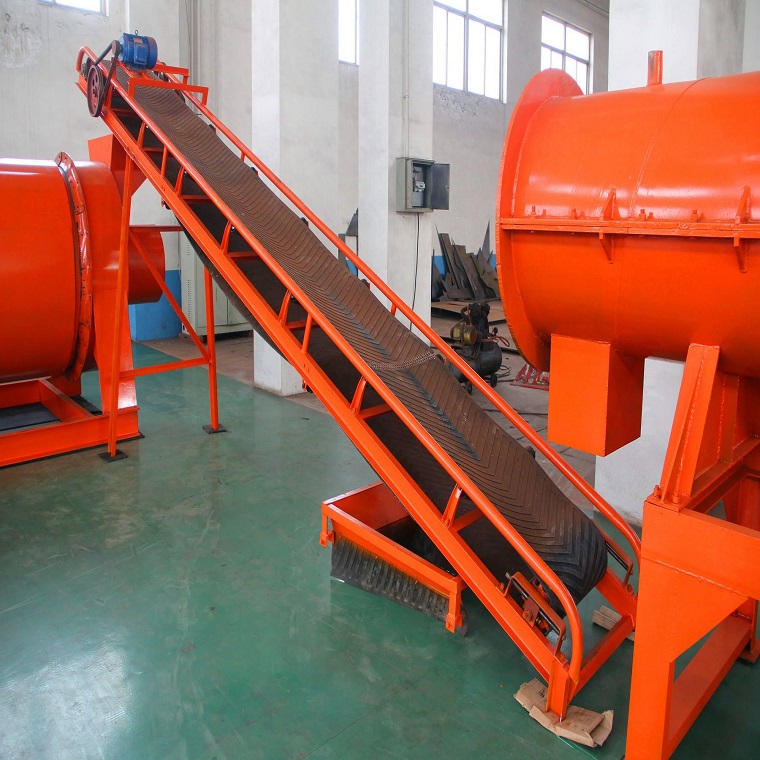

PHOTOS OF

TD75 Coal Mining Conveyor Belt Scraper

TD75 Coal Mining Conveyor Belt Scraper
TD75 Coal Mining Conveyor Belt Scraper

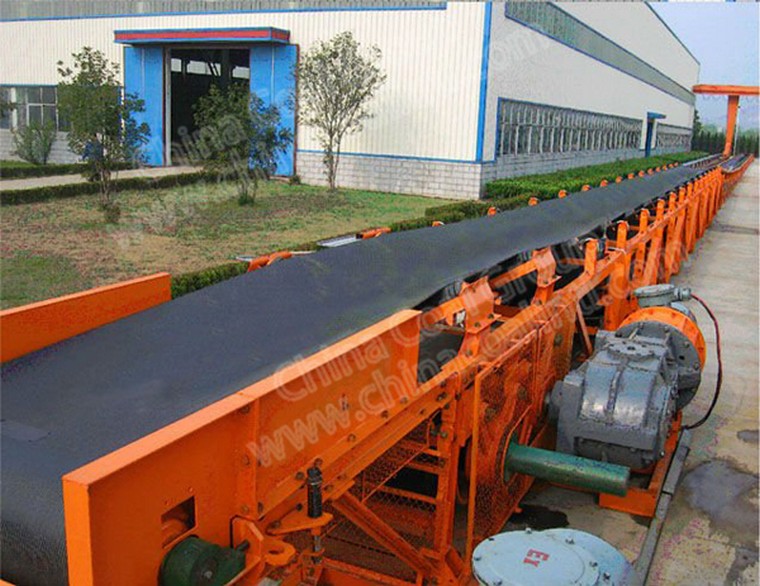

PHOTOS OF

TD75 Coal Mining Conveyor Belt Scraper
