Bucket Elevator

Date:2025-12-05 Label：

A bucket elevator is an enclosed conveying system that uses motor-driven buckets attached to a belt or chain to vertically lift bulk materials such as grain, fertilizer, and minerals efficiently and w

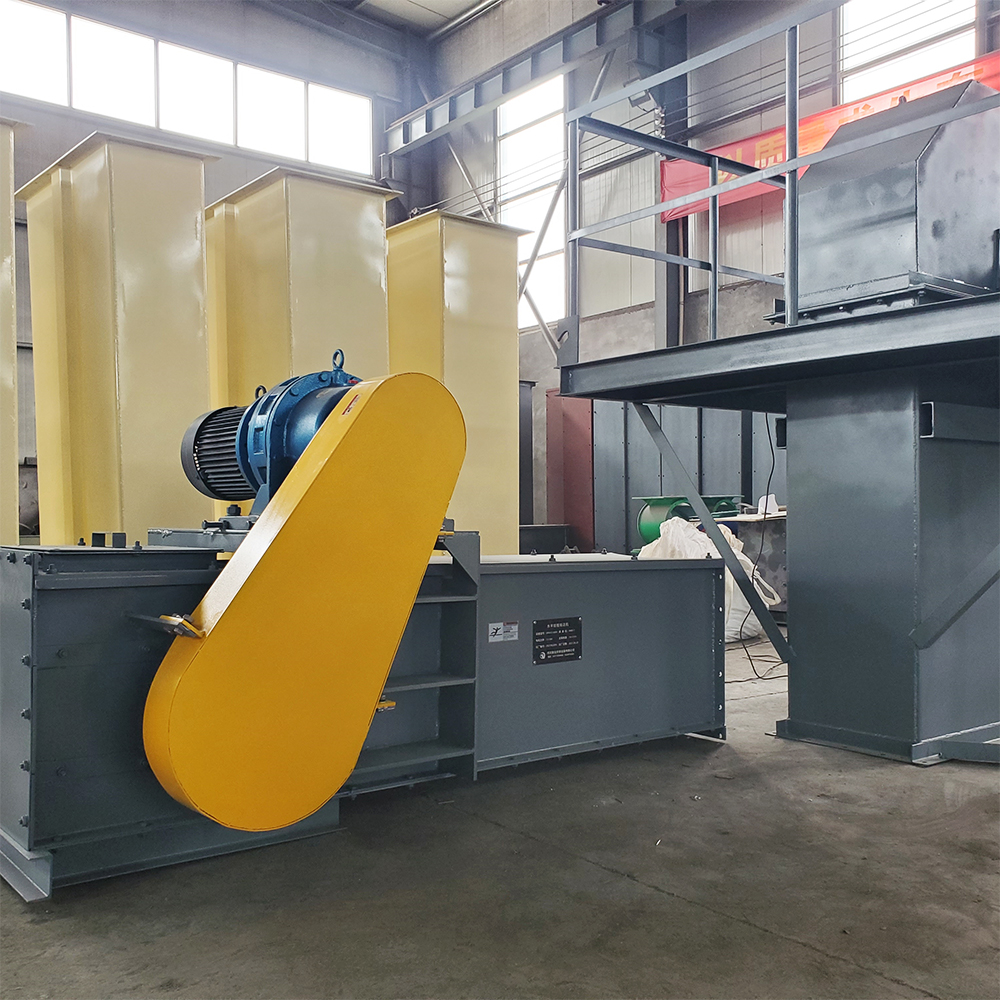

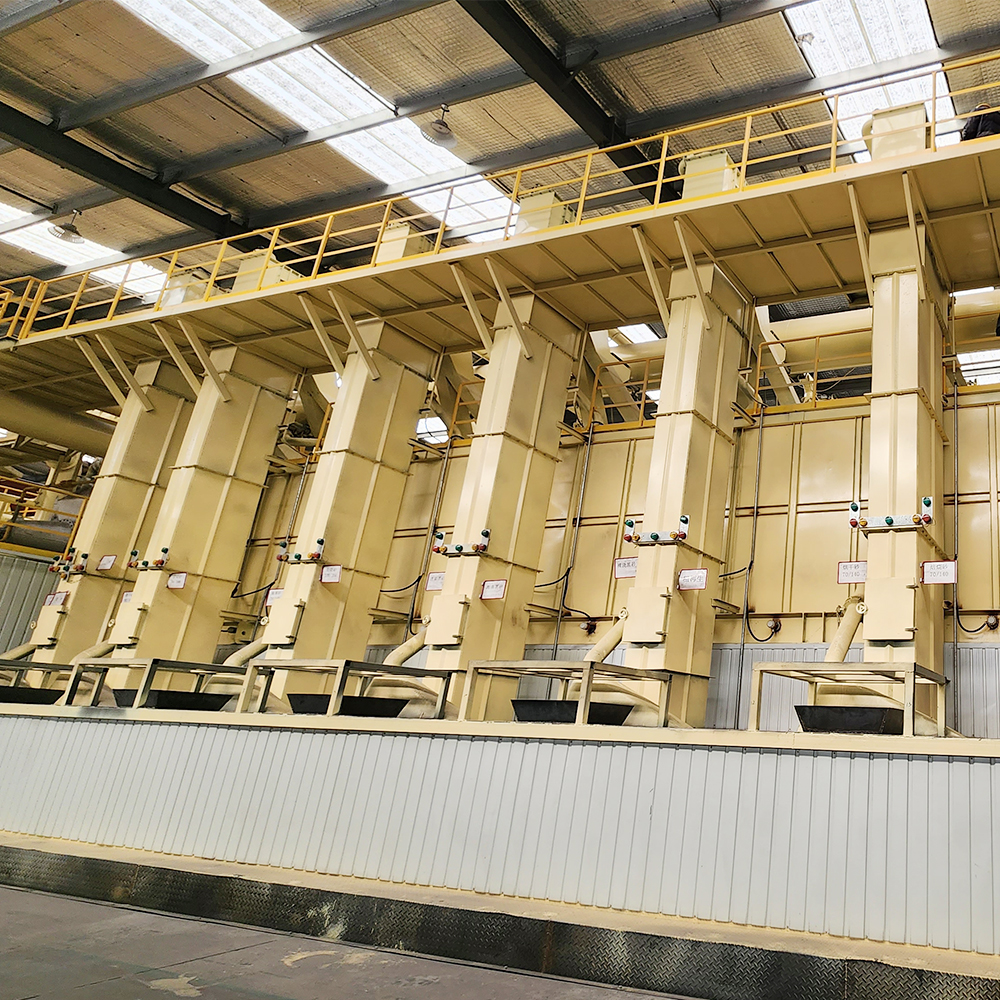

Introduction of

Bucket Elevator

A bucket elevator is a mechanical conveyor for vertically lifting bulk materials. It consists of:

Buckets: Attached to a belt or chain to carry the material.
Casing: An enclosed housing for containment and safety.
Drive System: Provides power, typically at the head (top).
Boot: The loading section at the bottom.

Key Features:

Efficient vertical transport.
Compact footprint.
Enclosed design minimizes dust and spillage.

Common Uses: Grain, fertilizers, minerals, chemicals, and other free-flowing granular or lump materials in agriculture, mining, and manufacturing.

MAIN PARAMETER OF

Bucket Elevator

Elevator model			TD100		TD160				TD250				TD250				TD250				TD500				TD630
Hopper model			Q	H	Q	na	Zd	Sd	Q	na	Zd	Sd	Q	na	Zd	Sd	Q	na	Zd	Sd	Q	na	Zd	Sd	H	Za	Sd
Conveying capacity	Centrifugal	m3/h	4	7	9	16	16	27	20	36	38	59	28	50	42	67	40	76	68	110	63	116	96	154	142	148	238
	hybrid												20	38	32	50	32	60	54	85	45	84	70	112	106	110	180
	Hopper width		100		160				250				315				400				500				630
hopper	capacity	L	0.15	0.3	0.49	0.9	1.2	1.9	1.22	2.24	3	4.6	1.95	3.55	3.75	5.8	3.07	5.6	5.9	9.4	8.4	9	9.3	14.9	14	14.6	23.5
	size	mm	200		280		350		360		450		400		500		480		560		500				710
conveyor	width	mm	150		200				300				400				500				600				700
	Number of layers				3				4								5								6
Drive drum diameter mm					400				500								630								800
Idler drum diameter mm					315				400								500								630
Hopper Running speed	Centrifugal	m/s			1.4				1.6								1.8								2
	hybrid												1.2				1.4				1.3				1.5
Spindle speed	Centrifugal	r/min			67				61								54.6								48
	hybrid												45.8				42.5				40				36
