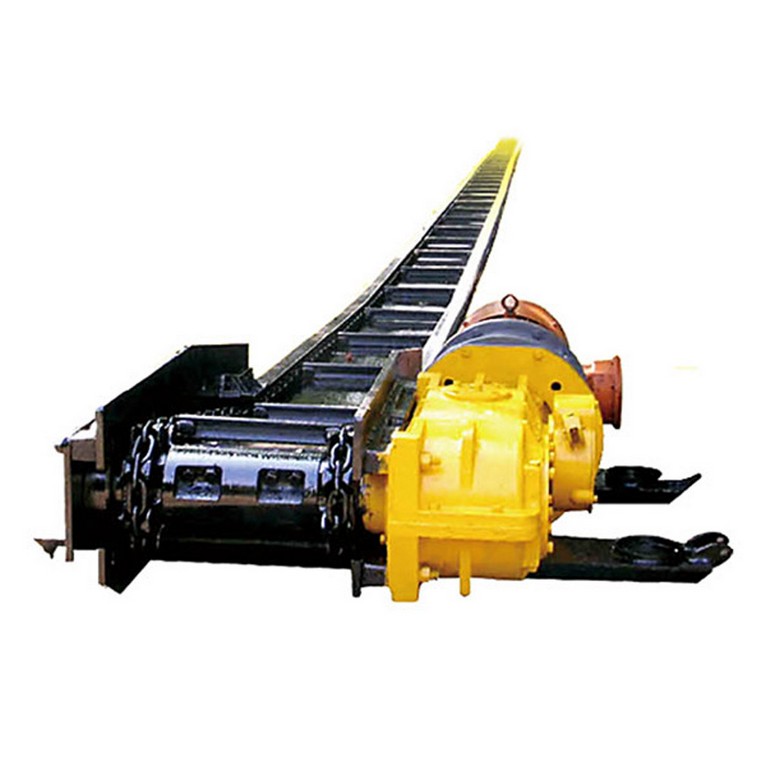

As a necessary equipment for coal mining, the scraper conveyor has been widely used. There are many types of scraper conveyors. The following mainly introduces the XGZ series scraper conveyors.
Scope of application: The scraper conveyor is mainly used for the transportation and distribution of various types of coal with different moisture and particle sizes below 300mm in the coal preparation plant and outside and in the coal mine ground production system. This equipment can transport materials with a certain temperature.
Performance characteristics: 1. The scraper conveyor has a wide range of applications, and general solid block materials and pieces can be transported; 2. Large conveying capacity, up to 1000 tons / hour; 3. The strength of the traction chain of the scraper conveyor is high, and it can be transported for a long distance, with a transport distance of 2 ~ 200 meters; 4. Flexible transmission line layout, transmission inclination angle 30 ~ 35 degrees, and bending radius 5 ~ 8 meters; 5. During the transportation process, various processes such as classification, drying, cooling or assembly can be performed.
Model specifications: Scraper conveyor can be divided into XGZ-6, XGZ-8, XGZ-10, XGZ-12, XGZ-14
