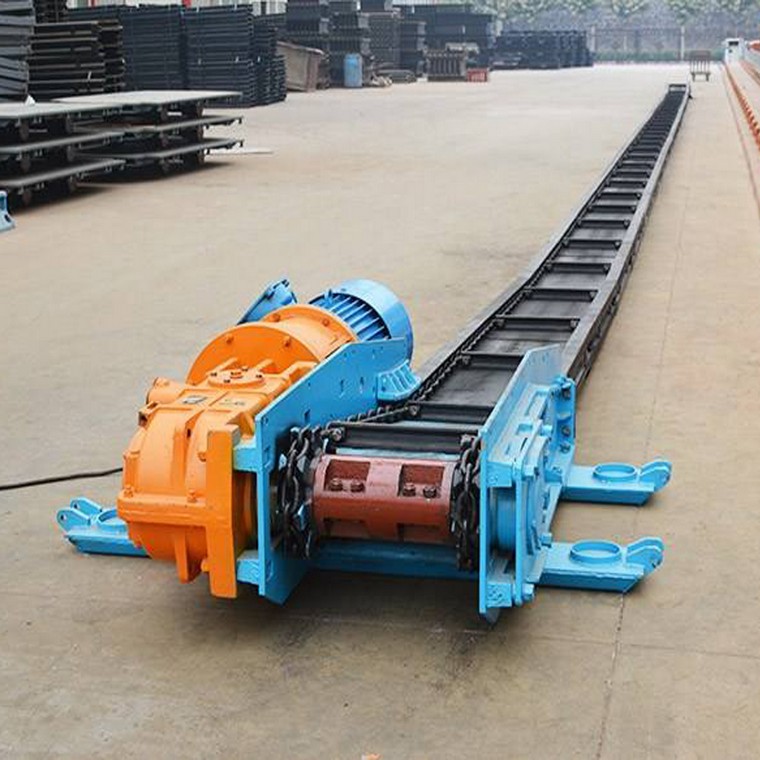

The chain scraper conveyor is mainly driven by the sprocket drive, which avoids the deviation or serpentine failure of other conveying equipment. Therefore, the chain scraper conveyor is suitable for production and transportation in various industries, and is widely used in the production of the pharmaceutical and food industries. In practical applications, after the chain scraper conveyor is installed, a series of adjustments and settings are an important part of normal use.
After each part of the scraper chain conveyor is installed, the scraper chain conveyor should be carefully adjusted to meet the production requirements.
For the motor part of the chain scraper conveyor, adjust the appropriate operating speed, and add the corresponding lubricant to each reducer and moving parts. Debug the electrical parts conveyed by the chain scraper, including regular circuit debugging and actions, so that the equipment has good performance and reaches the designed function and state. The chain scraper conveying adjusts the rollers and conveyor belt so that it has proper support and tension to prevent the conveyor belt from deviating.
After completing the adjustment of the scraper chain conveyor, perform a manual operation to set the appropriate running speed. This part is mainly motor control, but the difference of the conveyed material is different for the running speed. It is mainly divided into the following types:
Non-chain conveyor belt, long horizontal conveyor belt can choose a higher belt speed, but should not exceed 3.15m / s; chain conveyor belt, the shorter the length, the lower the belt speed. Large-pitch chain mesh belts, the running speed should not exceed 2m/s; short-pitch chain mesh belts, the belt speed is about 1.25m/s; when conveying scattered materials, the running speed is generally less than 1m/s.
In short, the adjustment and speed setting of the scraper chain conveyor play an important role in ensuring the normal operation of the production conveyor.
