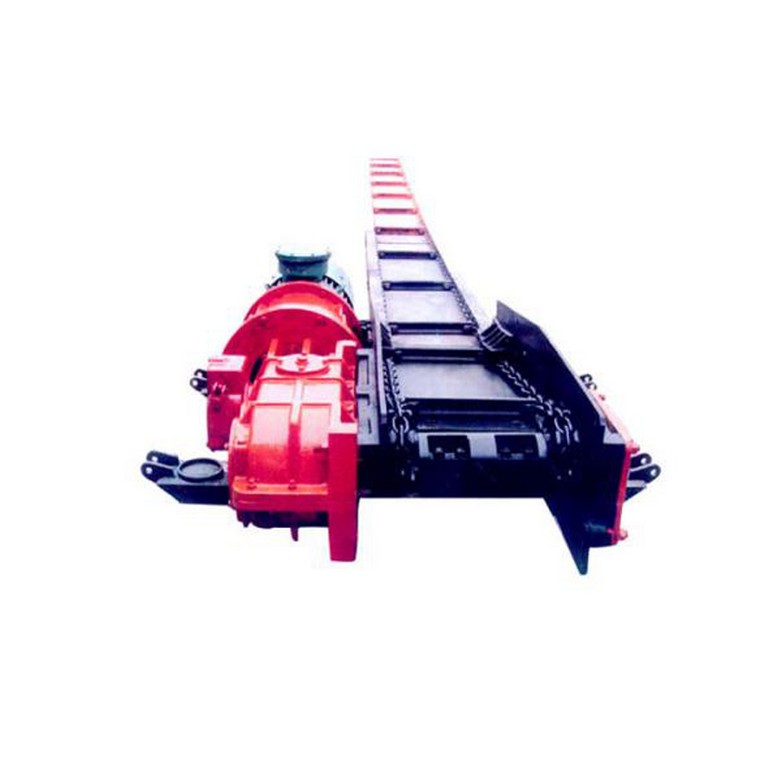

The chain scraper conveyor is mainly driven by a sprocket, which avoids the deviation or serpentine failure of other conveying equipment. Therefore, the scraper chain conveyor is suitable for the production and transportation of various industries, and is widely used in the production of the pharmaceutical and food industries. In actual application, after the chain scraper conveyor is installed, a series of adjustments and settings are an important part of normal use.
After each component of the chain scraper conveyor is installed, the chain scraper conveyor should be carefully adjusted to meet the production requirements.
For the motor part of the scraper chain conveyor, adjust the appropriate operating speed, and add corresponding lubricating oil to each reducer and moving parts. Debug the electrical part of the chain scraper conveyor, including regular circuit debugging and actions, so that the equipment has good performance and achieves the designed function and state. The chain scraper conveyor adjusts the rollers and the conveyor belt to have proper supporting force and tension to prevent the conveyor belt from deviating.
After completing the adjustment of the scraper chain conveyor, perform manual operation to set the appropriate operating speed. This part is mainly motor control, but the difference in conveying material is different for the running speed. It is mainly divided into the following categories:
Non-chain conveyor belt, long horizontal conveyor belt can choose higher belt speed, but should not exceed 3.15m/s; chain conveyor belt, the shorter the length, the lower the belt speed. For large pitch chain mesh belts, the running speed should not exceed 2m/s; for short chain mesh belts, the belt speed is about 1.25m/s; when transporting scattered materials, the running speed is generally less than 1m/s.
In short, the adjustment and speed setting of the scraper chain conveyor play an important role in ensuring the normal operation of the production conveyor.
